Description

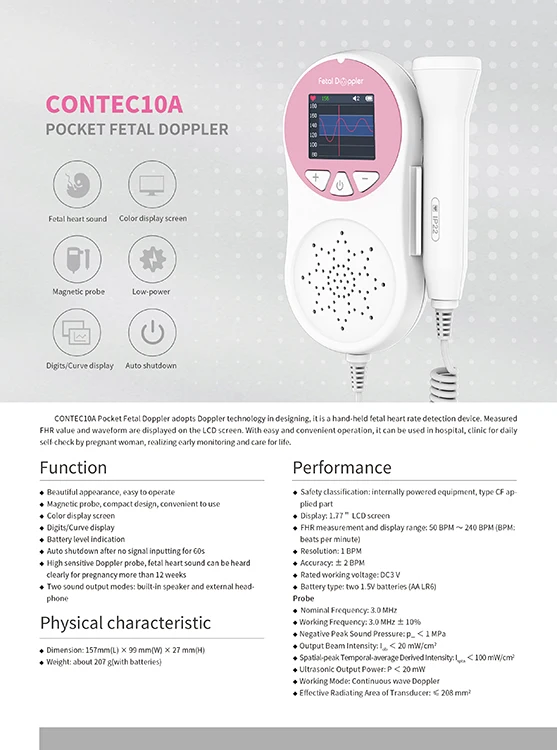

CONTEC10A ultrasound medical baby heartbeat monitor portable fetal monitor
KSh 9,000.00
Performance
Safety classification: internally powered equipment, type CF applied part
Display: 1.77″ LCD screen
FHR measurement and display range: 50 BPM ~ 240 BPM (BPM: beats per minute)
Resolution: 1 BPM
Accuracy: ± 2 BPM
Rated working voltage: DC3 V
Battery type: two 1.5V batteries (AA LR6)
Probe
Nominal Frequency: 3.0 MHz
Working Frequency: 3.0 MHz ± 10%
Negative Peak Sound Pressure: P_ < 1 MPa
Output Beam Intensity: Iob < 20 mW/cm2
Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2
Ultrasonic Output Power: P < 20 mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: ≤ 208 mm2
